Серия Device columns
23 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

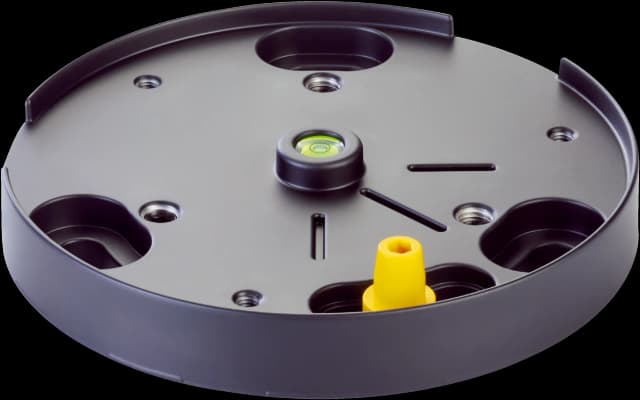

Base plate PP4 / PC4 / PM4
Mounting systems | Device columns | Base plate PP4 / PC4 / PM4 | Description: Base plate for PP4 and PC4 device columns as well as PM4 mirror columns

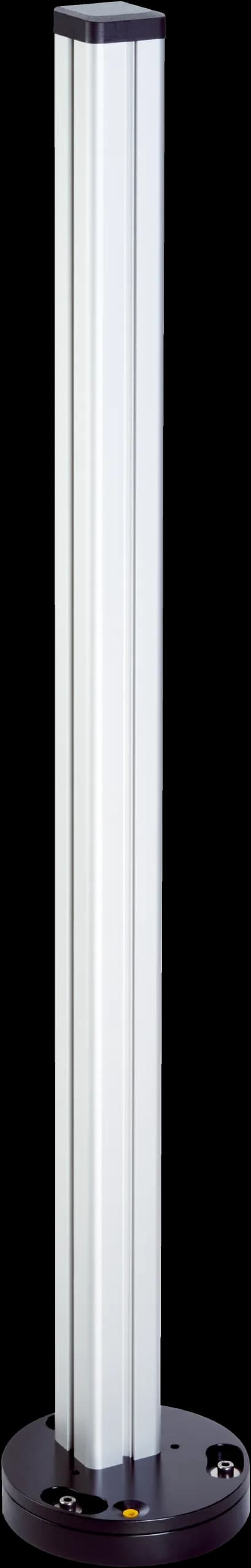

PC4-C098100000000
Mounting systems | Device columns | PC4-C098100000000 | Model: PC4 Compact Column | Column height: 984.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 750 mm | Suitable for deTem safety light-beam sensor: 2 beams, distance of lowest beam from floor: 400 mm | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the
PC4-C108100000000
Mounting systems | Device columns | PC4-C108100000000 | Model: PC4 Compact Column | Column height: 1,084.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 750 mm | Suitable for deTem safety light-beam sensor: 3 beams, distance of lowest beam from floor: 200 mm | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on t
PC4-C118100000000
Mounting systems | Device columns | PC4-C118100000000 | Model: PC4 Compact Column | Column height: 1,184.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 900 mm | Suitable for deTem safety light-beam sensor: 3 beams, distance of lowest beam from floor: 300 mm4 beams, distance of lowest beam from floor: 200 mm | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screw
PC4-C128100000000
Mounting systems | Device columns | PC4-C128100000000 | Model: PC4 Compact Column | Column height: 1,284.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,050 mm | Suitable for deTem safety light-beam sensor: 4 beams, distance of lowest beam from floor: 300 mm | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on
PC4-C141100000000
Mounting systems | Device columns | PC4-C141100000000 | Model: PC4 Compact Column | Column height: 1,410.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,200 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateOperating instructions for downlo
PC4-C156100000000
Mounting systems | Device columns | PC4-C156100000000 | Model: PC4 Compact Column | Column height: 1,560.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,350 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateOperating instructions for downlo
PC4-C171100000000
Mounting systems | Device columns | PC4-C171100000000 | Model: PC4 Compact Column | Column height: 1,710.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,500 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateOperating instructions for downlo
PC4-C186100000000
Mounting systems | Device columns | PC4-C186100000000 | Model: PC4 Compact Column | Column height: 1,860.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,650 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateOperating instructions for downlo
PC4-C201100000000
Mounting systems | Device columns | PC4-C201100000000 | Model: PC4 Compact Column | Column height: 2,010.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,800 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateOperating instructions for downlo
PC4-C216100000000
Mounting systems | Device columns | PC4-C216100000000 | Model: PC4 Compact Column | Column height: 2,160.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,950 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateOperating instructions for downlo
PC4-C231100000000
Mounting systems | Device columns | PC4-C231100000000 | Model: PC4 Compact Column | Column height: 2,310.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 2,100 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateOperating instructions for downlo

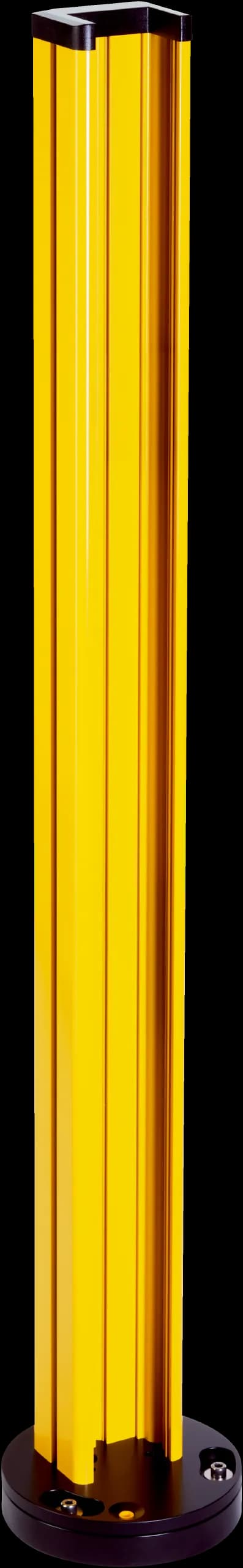

PP4-C098110000000
Mounting systems | Device columns | PP4-C098110000000 | Model: PP4 Protective Column | Column height: 984.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 750 mm | Suitable for deTem safety light-beam sensor: 2 beams, distance of lowest beam from floor: 400 mm | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on
PP4-C108110000000
Mounting systems | Device columns | PP4-C108110000000 | Model: PP4 Protective Column | Column height: 1,084.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 750 mm | Suitable for deTem safety light-beam sensor: 3 beams, distance of lowest beam from floor: 200 mm | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate o
PP4-C118110000000
Mounting systems | Device columns | PP4-C118110000000 | Model: PP4 Protective Column | Column height: 1,184.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 900 mm | Suitable for deTem safety light-beam sensor: 3 beams, distance of lowest beam from floor: 300 mm4 beams, distance of lowest beam from floor: 200 mm | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 sc
PP4-C128110000000
Mounting systems | Device columns | PP4-C128110000000 | Model: PP4 Protective Column | Column height: 1,284.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,050 mm | Suitable for deTem safety light-beam sensor: 4 beams, distance of lowest beam from floor: 300 mm | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate
PP4-C141110000000
Mounting systems | Device columns | PP4-C141110000000 | Model: PP4 Protective Column | Column height: 1,410.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,200 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateAlignment clampOperating instr
PP4-C156110000000
Mounting systems | Device columns | PP4-C156110000000 | Model: PP4 Protective Column | Column height: 1,560.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,350 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateAlignment clampOperating instr
PP4-C171110000000
Mounting systems | Device columns | PP4-C171110000000 | Model: PP4 Protective Column | Column height: 1,710.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,500 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateAlignment clampOperating instr
PP4-C186110000000
Mounting systems | Device columns | PP4-C186110000000 | Model: PP4 Protective Column | Column height: 1,860.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,650 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateAlignment clampOperating instr
PP4-C201110000000
Mounting systems | Device columns | PP4-C201110000000 | Model: PP4 Protective Column | Column height: 2,010.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,800 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateAlignment clampOperating instr
PP4-C216110000000
Mounting systems | Device columns | PP4-C216110000000 | Model: PP4 Protective Column | Column height: 2,160.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,950 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateAlignment clampOperating instr
PP4-C231110000000
Mounting systems | Device columns | PP4-C231110000000 | Model: PP4 Protective Column | Column height: 2,310.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 2,100 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateAlignment clampOperating instr
