Масивни сензори
Array Sensors
19 продукта

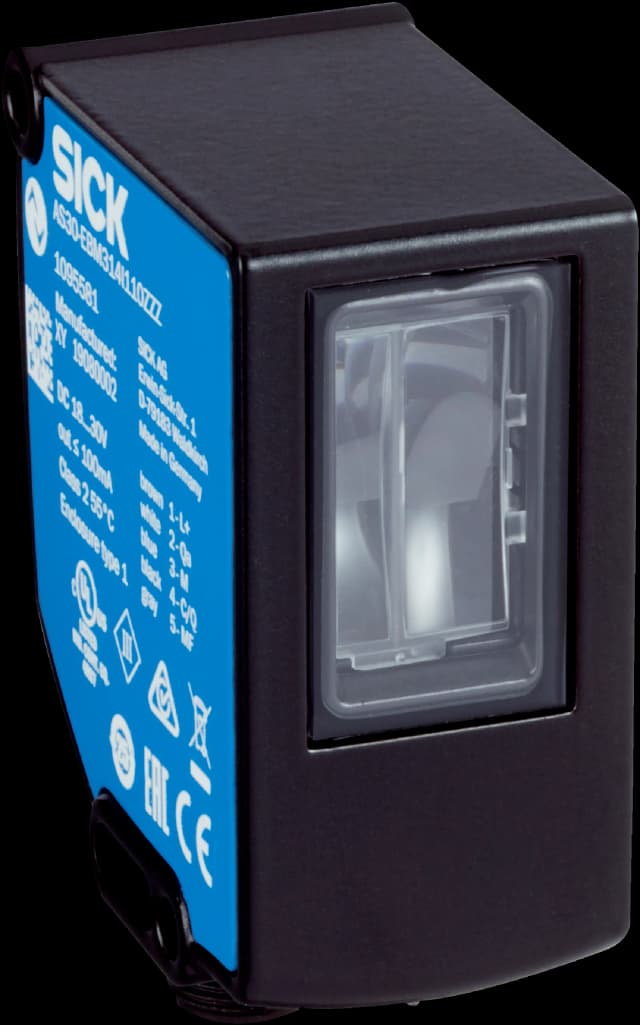

AS30-EBM314I110ZZZ
Array sensors | AS30 | AS30-EBM314I110ZZZ | Communication interface: IO-Link | Sensor principle: Proximity system | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 30 mm / 25 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.2 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-EBM314I220A00
Array sensors | AS30 | AS30-EBM314I220A00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 30 mm / 25 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.03 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-EBM314I220C00
Array sensors | AS30 | AS30-EBM314I220C00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 30 mm / 25 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.03 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-EBM314I220C00
Array sensors | AS30 | AS30-EBM314I220C00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 30 mm / 25 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.03 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-EBM434I110ZZZ
Array sensors | AS30 | AS30-EBM434I110ZZZ | Communication interface: IO-Link | Sensor principle: Proximity system | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 45 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.2 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-EBM444I110ZZZ
Array sensors | AS30 | AS30-EBM444I110ZZZ | Communication interface: IO-Link | Sensor principle: Proximity system | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 45 mm / 250 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.2 mm | Switching frequency: 100 Hz | Analog output: 4 mA ... 20 mA
AS30-EBM534I220A00
Array sensors | AS30 | AS30-EBM534I220A00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 50 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.05 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-EBM534I220C00
Array sensors | AS30 | AS30-EBM534I220C00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 50 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.05 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-EBM534I220C00
Array sensors | AS30 | AS30-EBM534I220C00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 50 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.05 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-EBM534I220S04000C000ZZZ
Array sensors | AS30 | AS30-EBM534I220S04000C000ZZZ | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 50 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.05 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-EBM544I220A00
Array sensors | AS30 | AS30-EBM544I220A00 | Communication interface: IO-Link | Sensor principle: Reflector mode | Functional principle: Web guiding, positioning | Principle of operation (default): Web guiding | Light source: LED | Measuring range / sensing distance: 50 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.05 mm | Switching frequency: 100 Hz | Analog output: 4 mA ... 20 mA

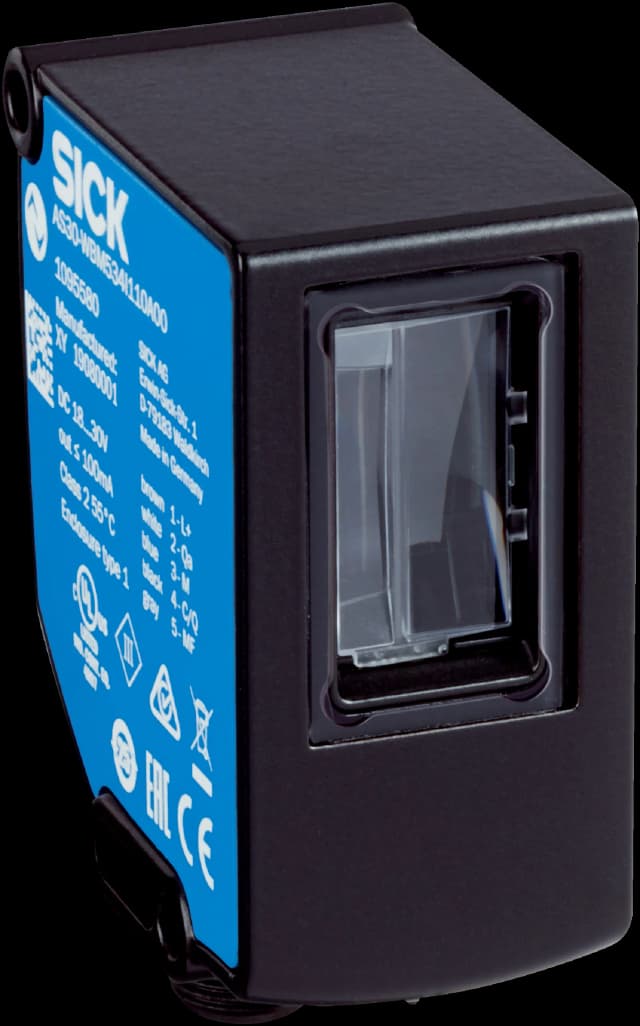

AS30-MBM834I320A00
Array sensors | AS30 | AS30-MBM834I320A00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Multi-edge, Web guiding, positioning, Width measurement, Center point measurement | Principle of operation (default): Multi-edge: Detection and evaluation of up to 8 edges | Light source: LED | Measuring range / sensing distance: 165 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0
AS30-PBM314I110ZZZ
Array sensors | AS30 | AS30-PBM314I110ZZZ | Communication interface: IO-Link | Sensor principle: Proximity system | Functional principle: Web guiding, positioning | Principle of operation (default): Positioning | Light source: LED | Measuring range / sensing distance: 30 mm / 25 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.2 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-PBM434I110ZZZ
Array sensors | AS30 | AS30-PBM434I110ZZZ | Communication interface: IO-Link | Sensor principle: Proximity system | Functional principle: Web guiding, positioning | Principle of operation (default): Positioning | Light source: LED | Measuring range / sensing distance: 45 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.2 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA
AS30-WBM314I220A00
Array sensors | AS30 | AS30-WBM314I220A00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning, Width measurement, Center point measurement | Principle of operation (default): Width measurement | Light source: LED | Measuring range / sensing distance: 30 mm / 25 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.03 mm | Switching frequency: 500 Hz | Analog outp
AS30-WBM314I220C00
Array sensors | AS30 | AS30-WBM314I220C00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning, Width measurement, Center point measurement | Principle of operation (default): Width measurement | Light source: LED | Measuring range / sensing distance: 30 mm / 25 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.03 mm | Switching frequency: 500 Hz | Analog outp
AS30-WBM314I220C00
Array sensors | AS30 | AS30-WBM314I220C00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning, Width measurement, Center point measurement | Principle of operation (default): Width measurement | Light source: LED | Measuring range / sensing distance: 30 mm / 25 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.03 mm | Switching frequency: 500 Hz | Analog outp
AS30-WBM534I220A00
Array sensors | AS30 | AS30-WBM534I220A00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning, Width measurement, Center point measurement | Principle of operation (default): Width measurement | Light source: LED | Measuring range / sensing distance: 50 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.05 mm | Switching frequency: 500 Hz | Analog out
AS30-WBM534I220C00
Array sensors | AS30 | AS30-WBM534I220C00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning, Width measurement, Center point measurement | Principle of operation (default): Width measurement | Light source: LED | Measuring range / sensing distance: 50 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.05 mm | Switching frequency: 500 Hz | Analog out
